MIL-DTL-24688A
APPENDIX A

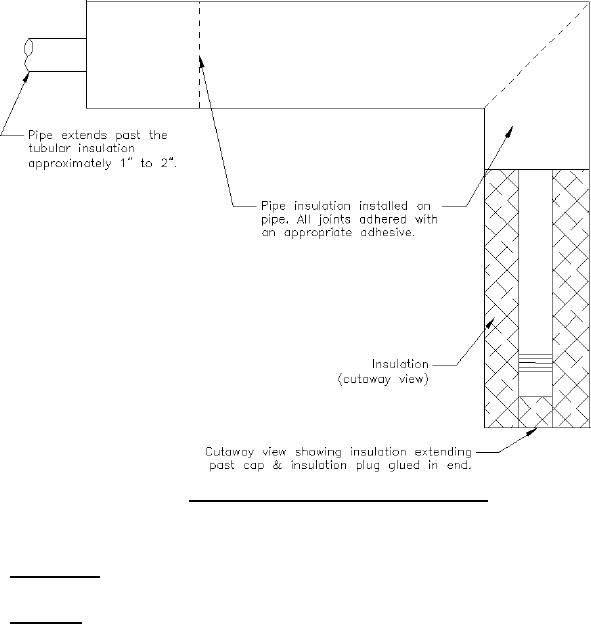

FIGURE A-8. Typical elevation of pipe with insulation installed.
A.8 TEST PROCEDURES
A.8.1 Environmental. The environmental conditions inside the test compartment just prior to test shall be
50 to 90 °F.
A.8.2 Procedures. The following test procedures shall be followed:
a.
Install test pipe insulations.
b.
Verify the placement and operation of instrumentation, video, and position of target array.
c.
Verify environmental conditions.
d.
Position wood crib in test corner.
e.
Pour heptane fuel into pan and position under the wood crib.
f.
Begin 2-minute baseline data collection.
g.
At 2-minute mark, ignite heptane.
h. Continue the test until either 15 minutes of burn time has elapsed (17 minutes total), or the test must be
ended due to safety considerations.
